Endcap Module Construction

A large activity at MPI was the assembly of 424 modules of the middle ring types. The production was performed within the CE-cluster in collaboration with the University of Freiburg, NIKHEF Amsterdam, the Charles University and Technical University, Prague and IHEP Protvino.

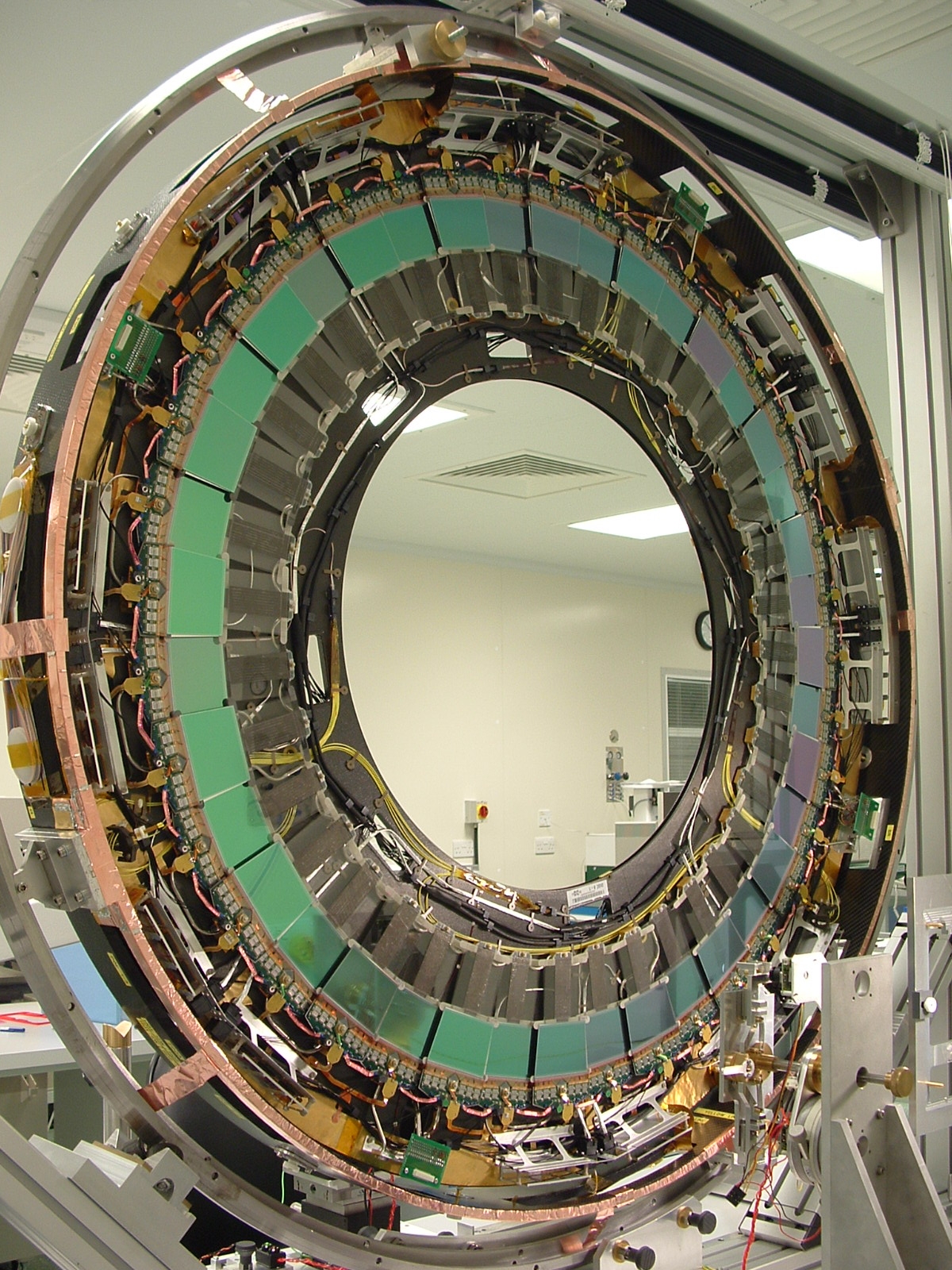

Disc8C The module to disc mounting has been done at Liverpool for endcap C and Nikhef for endcap A. The photo shows the first MPI modules mounted onto disc 8C.

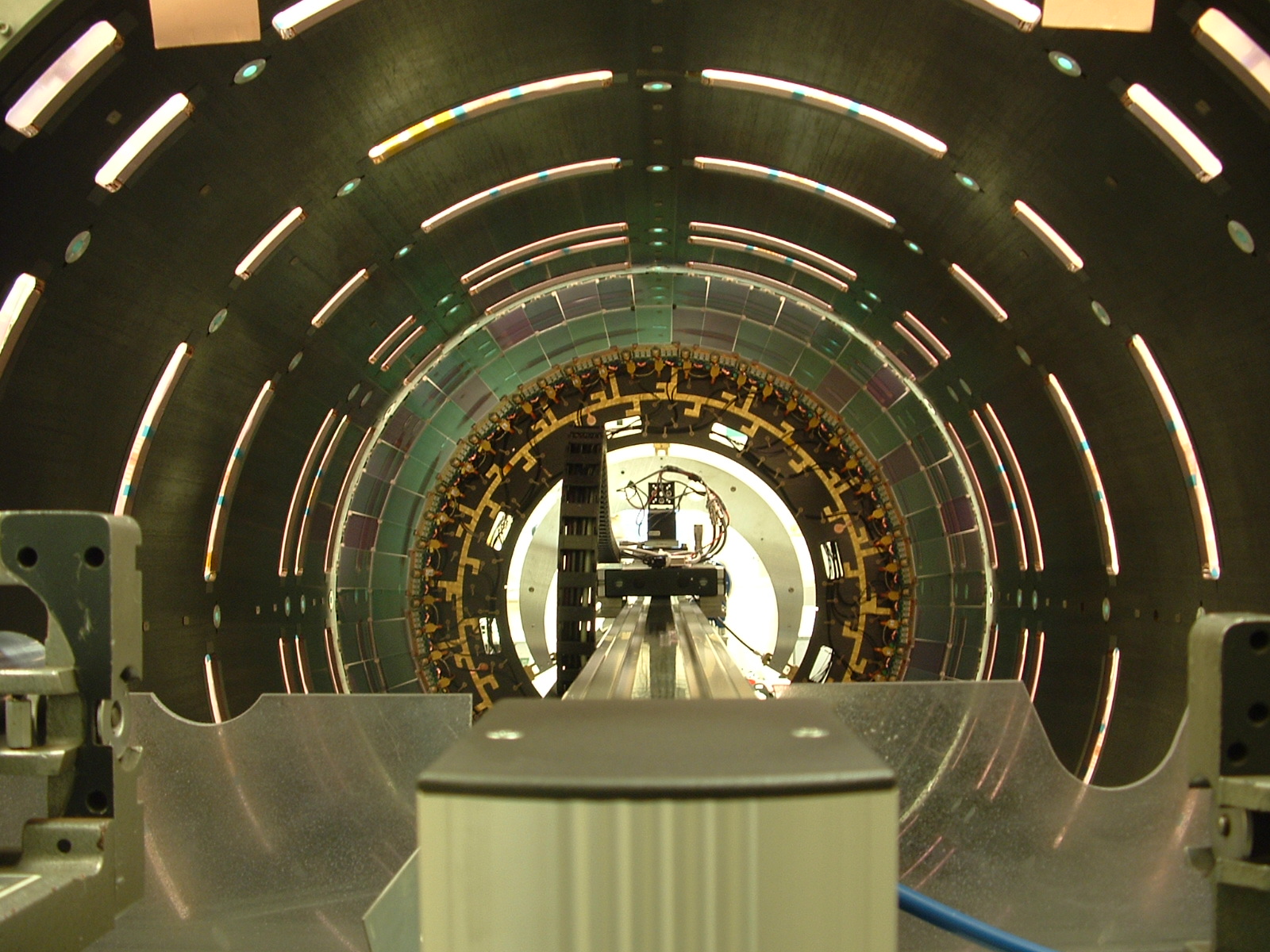

Disc9C in Cylinder The discs have been inserted into the endcap cylinders. The photo shows the first disc of endcap C after insertion.
